Item |
Name |
Model No.(mm) |
|||||||||
|
L |
L1 |
D |
D1 |
d1 |
d2 |
H |
|||||
|
R2 Series |
|||||||||||
|
1 |
R2-001 |
RN0326-2-1006 |
26 |
6 |
2 |
1.0 |
0.3 |
0.6 |
--- |
||
|
2 |
R2-002 |
RN0326-2-0806 |
26 |
6 |
2 |
0.8 |
0.3 |
0.6 |
--- |
||
|
3 |
R2-003 |
RN0330-2-0807 |
30 |
7 |
2 |
0.8 |
0.3 |
0.4 |
--- |
||
|
4 |
R2-004 |
RN0326-2-1006 |
26 |
6 |
2 |
1 |
0.3 |
0.6 |
--- |
||
|
5 |
R2-005 |
RN0330-2-0807 |
30 |
7 |
2 ,, , , , |
0.8 |
0.3 |
0.4 |
--- |
||
|
6 |
R2-006 |
RN0330-2-0810 |
30 |
10 |
2 |
0.8 |
0.3 |
0.4 |
--- |
||
|
7 |
R2-007 |
RN0530-2-1008 |
30 |
8 |
2 |
1 |
0.5 |
0.5 |
--- |
||
|
8 |
R2-008 |
RN0535-2.5-1411 |
35 |
11 |
2.5 |
1.4 |
0.5 |
0.8 |
--- |
||
|
9 |
R2-009 |
RN0635-2-1610 |
35 |
10 |
2 |
1.5 |
0.5 |
0.8 |
--- |
||
|
10 |
R2-010 |
RN0535-2.5-1210 |
35 |
10 |
2.5 |
1.2 |
0.5 |
0.8 |
--- |
||
|
11 |
R2-011 |
RN0530-2-1208 |
30 |
8 |
2 |
1.2 |
0.5 |
0.8 |
--- |
||
|
12 |
R2-012 |
RN0830-2 |
30 |
|
2 |
2 |
0.8 |
0.8 |
--- |
||
|
R3 Series |
|||||||||||
|
1 |
R3-001 |
RN0330-3-1007 |
30 |
7 |
3 |
1.0 |
0.3 |
0.8 |
--- |
||
|
2 |
R3-002 |
RN0330-3-0807 |
30 |
7 |
3 |
0.8 |
0.3 |
0.6 |
--- |
||
|
3 |
R3-003 |
RN0430-3-1210 |
30 |
10 |
3 |
1.2 |
0.4 |
0.6 |
--- |
||
|
4 |
R3-007 |
RN0530-3-1311 |
30 |
11 |
3 |
1.3 |
0.5 |
0.8 |
--- |
||
|
5 |
R3-008 |
RN0323-3-1007P |
23 |
7 |
3 |
1 |
0.3 |
0.8 |
16 |
||
|
6 |
R3-009 |
RN0514-3-1509P |
14 |
9 |
3 |
1.5 |
0.5 |
0.6 |
6 |
||
|
7 |
R3-010 |
RN0311-3-1006P |
11 |
6 |
3 |
1 |
0.3 |
0.6 |
5 |
||
|
8 |
R3-011 |
RN0530-3-1455 |
30 |
5.5 |
3 |
1.4 |
0.5 |
0.6 |
--- |
||
|
9 |
R3-012 |
RN0330-3-1535P |
30 |
3.5 |
3 |
1.5 |
0.3 |
0.5 |
13 |
||
|
10 |
R3-013 |
RN0330-3-1012 |
30 |
12 |
3 |
1 |
0.3 |
0.6 |
--- |
||
|
11 |
R3-014 |
RN0821-3-2015P |
21 |
15 |
3 |
2 |
0.8 |
1 |
6 |
||
| ,
12 |
R3-015 |
RN0615-3-1505 |
15 |
5 |
3 |
1.5 |
0.6 |
0.6 |
--- |
||
|
13 |
R3-016 |
RN0530-3-2014 |
30 |
14 |
3 |
2 |
0.5 |
0.5 |
--- |
||
|
14 |
R3-017 |
RN0426-3-1208 |
26 |
8 |
3 |
1.2 |
0.4 |
0.6 |
--- |
||
|
15 |
R3-018 |
RN0414-3-1309 |
14 |
9 |
3 |
1.3 |
0.4 |
0.6 |
--- |
||
|
16 |
R3-019 |
RN0334-3-1035P |
34 |
3.5 |
3 |
1 |
0.3 |
0.6 |
8 |
||
|
17 |
R3-020 |
RN1030-3-2514 |
30 |
14 |
3 |
2.5 |
1 |
1.2 |
--- |
||
|
18 |
R3-021 |
RN0522-3-1608P |
22 |
8 |
3 |
1.6 |
0.5 |
0.8 |
14 |
||
|
19 |
R3-022 |
RN1030-3-20145 |
30 |
14.5 |
3 |
2 |
1 |
1.2 |
--- |
||
|
20 |
R3-023 |
RN08115-3-2006P |
11.5 |
6 |
3 |
2 |
0.8 |
1.1 |
5 |
||
|
21 |
R3-024 |
RN15115-3P |
11.5 |
** |
3 |
** |
1.5 |
2 |
5.5 |
||
|
22 |
R3-025 |
RN08145-3-2085P |
14.5 |
8.5 |
3 |
2 |
0.8 |
0.8 |
6 |
||
|
23 |
R3-026 |
RN10105-3 |
10.5 |
** |
3 |
** |
1 |
1 |
--- |
||
|
24 |
R3-027 |
RN1014-3 |
14 |
** |
3 |
** |
1 |
1 |
--- |
||
|
25 |
R3-028 |
RN0825-3-2520 |
25 |
20 |
3 |
2.5 |
0.8 |
1 |
--- |
||
|
26 |
R3-029 |
RN0829-3-2015 |
29 |
15 |
3 |
2 |
0.8 |
1.2 |
--- |
||
|
27 |
R3-030 |
RN0630-3-1465 |
30 |
6.5 |
3 |
1.4 |
0.6 |
0.8 |
--- |
||
|
28 |
R3-031 |
RN0545-3-1315 |
45 |
15 |
3 |
1.3 |
0.5 |
0.6 |
--- |
||
|
29 |
R3-032 |
RN0630-3-1406 |
30 |
6 |
3 |
1.4 |
1.2 |
0.6 |
--- |
||
|
R4 Series |
|||||||||||
|
1 |
R4-001 |
RN0843-4-2014P |
43 |
14 |
4 |
2.0 |
0.8 |
0.8 |
20 |
||
|
2 |
R4-002 |
RN0843-4-2014P |
43 |
14 |
4 |
2.0 |
0.8 |
1.0 |
20 |
||
|
3 |
R4-003 |
RN0330-4-1515 |
30 |
15 |
4 |
1.5 |
0.3 |
0.6 |
--- |
||
|
4 |
R4-004 |
RN0340-4-1006 |
40 |
6 |
4 |
1 |
0.3 |
0.6 |
--- |
||
|
5 |
R4-005 |
RN1043-4-2514P |
43 |
14 |
4 |
2.5 |
1 |
1.2 |
20 |
||
|
6 |
R4-006 |
RN08285-4-2015 |
28.5 |
15 |
4 |
2 |
0.8 |
1.2 |
|
||

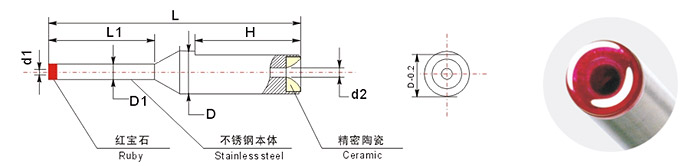

紅寶石線嘴（紅寶石導針）：此產品由不銹鋼金屬本體和寶石精密加工、組合而成，紅寶石硬度僅次于金剛石，達莫氏9級以上，它是單晶體，可以制得極高的光潔度。能有效的保護漆膜及長時間連續工作，即能保證線圈的高絕緣性不受絲毫影響。
